# Cribl FireEye HX/Trellix

In this guide, you will configure the FireEye HX data connector using Cribl.

### Prerequisites

* [ ] FireEye HX alert and host data must be configured as a source in Cribl Streams

### Add the Cribl FireEye HX data connector

1. Log in to [Radiant Security](https://app.radiantsecurity.ai/).
2. From the navigation menu, select **Settings** > **Data Connector** and click **+ Add Connector**.
3. Search for and select the **Cribl FireEye HX** option and then click **Data** **Feeds.**
4. Under **Select your data feeds**, select **Cribl FireEye HX** and click **Credentials**.
5. Under **Credential Name**, give the credential an identifiable name.
6. Under **Required** **Credentials**, add the **Webhook Auth Token**. This can be any value defined by you, preferably something long and rotated periodically.
7. Click **Add Connector**.

### Create a webhook destination in Cribl Streams

1. Login to Cribl.
2. Navigate to **Stream**.
3. Use the top navigation to open **Manage** > **Groups**.
4. From the list of groups, click the group that has the FireEye HX data as a **Source**.
5. Use the top navigation to open **Data** > **Destinations**.
6. Filter the Destinations to find and click **Webhook**.
7. Click **Add Destination**.

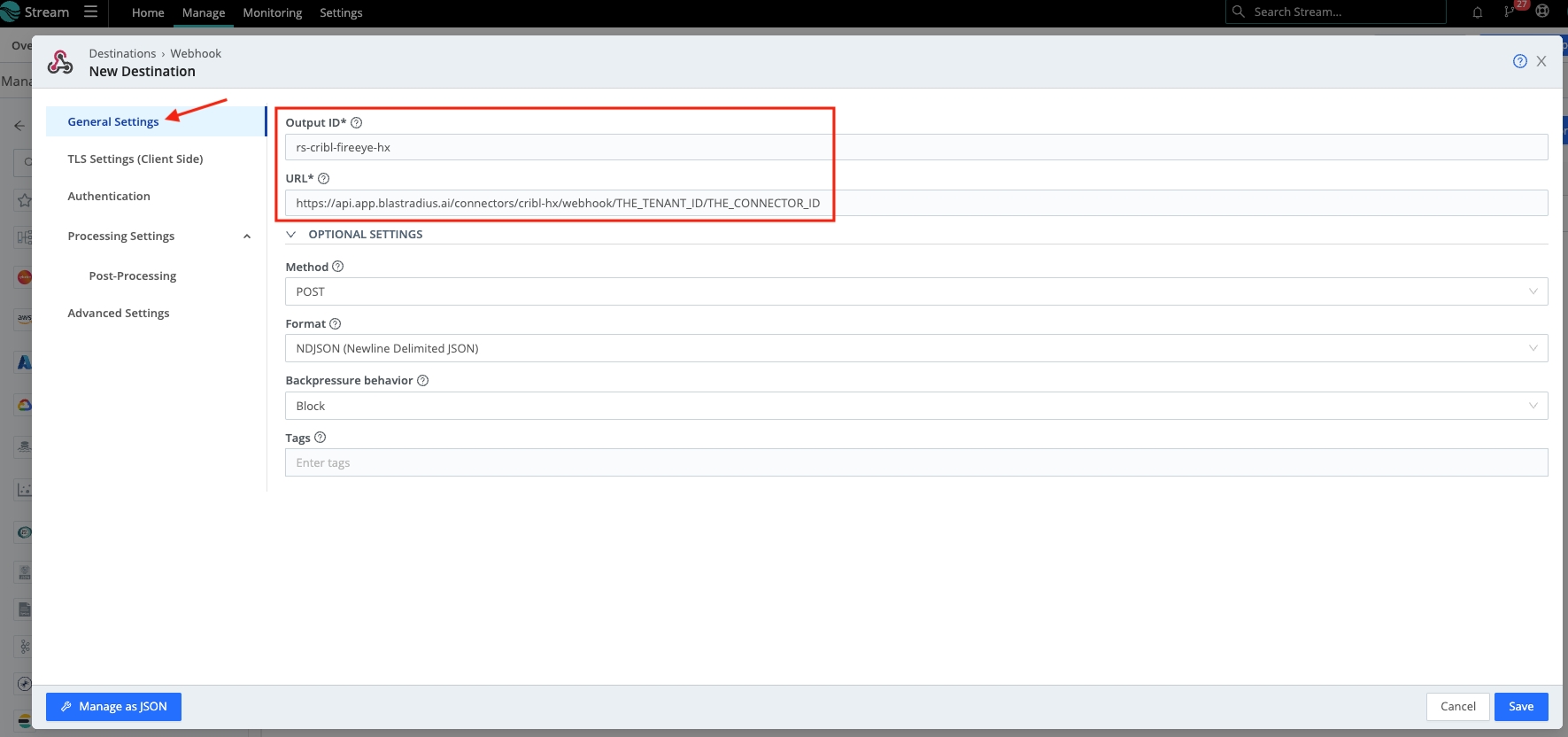

8. Under **General Settings**, configure the following:
   * **Output ID**: `rs-cribl-fireeye-hx`
   * **URL**: `https://api.app.blastradius.ai/connectors/cribl-hx/webhook/THE_TENANT_ID/THE_CONNECTOR_ID`<br>

     <figure><img src="https://20705827.fs1.hubspotusercontent-na1.net/hubfs/20705827/Knowledge%20Base%20Articles/Cribl%20FireEye%20HX%20Trellix/Screenshot%202023-06-19%20at%203.11.52%20PM(1).png" alt=""><figcaption></figcaption></figure>

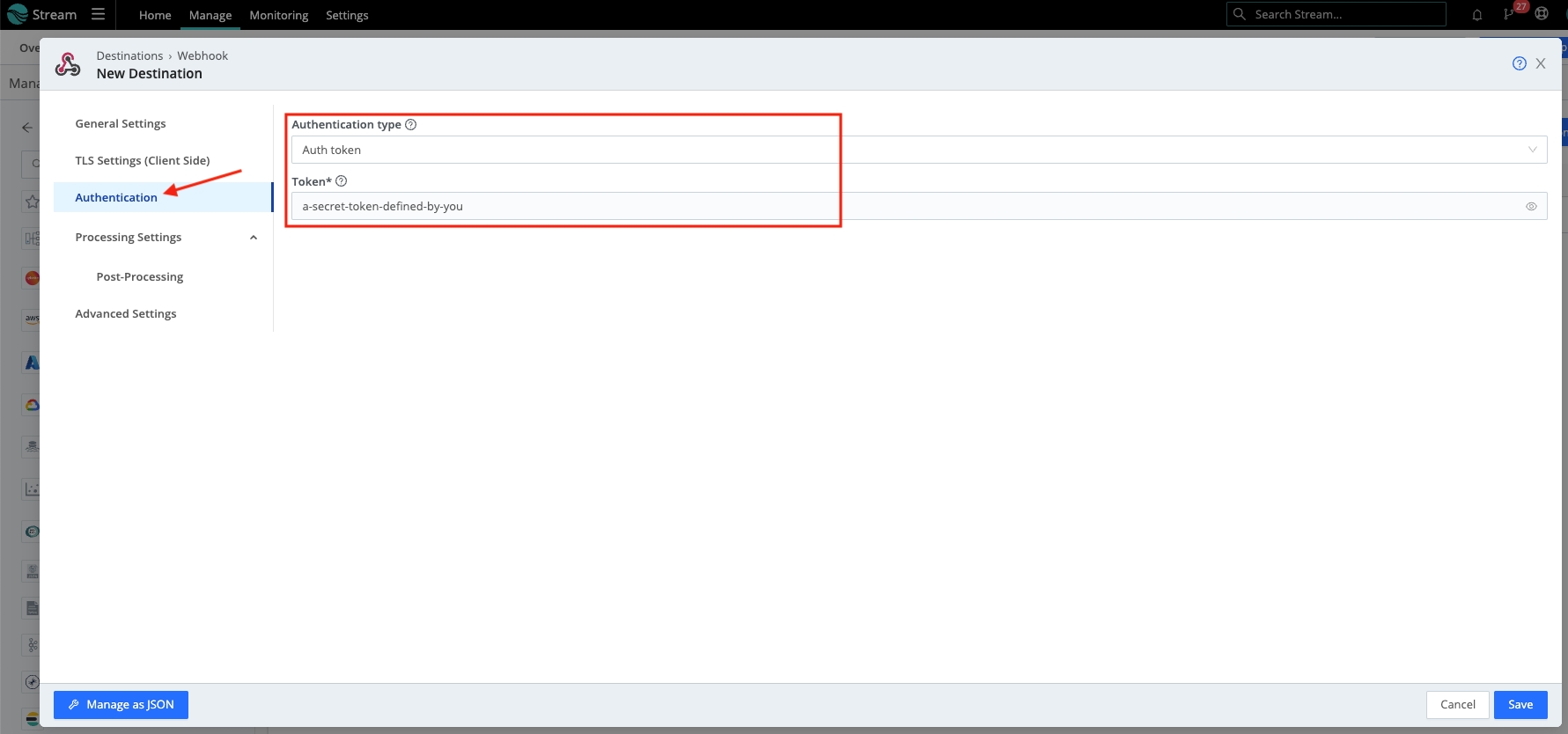

9. Click **Authentication** and configure the following properties:
   * **Authentication** **type**: `Auth Token`
   * **Token**: the Webhook Auth Token configured in Radiant Security<br>

     <figure><img src="https://20705827.fs1.hubspotusercontent-na1.net/hubfs/20705827/Knowledge%20Base%20Articles/Cribl%20FireEye%20HX%20Trellix/Screenshot%202023-06-19%20at%203.12.15%20PM.png" alt=""><figcaption></figcaption></figure>
10. Click **Save** to save the connector configuration.
11. Use the top navigation to open **Routing > Data Routes**.
12. Click **Add Route**.
13. Configure the route to send the FireEye HX data (Hosts and Alerts) to a Pipeline that outputs to the `rs-cribl-fireeye-hx` Destination.
